This React and Spring boot tutorial will teach you how to do basic database functions that are CREATE RETIEVE, UPDATE and DELETE and SEARCH using mysql Database. The INSERT, SELECT, UPDATE and DELETE statements can be used in any database system, because this is support by all relational database systems.
We will learn how to INSERT, SELECT, UPDATE and DELETE and SEARCH in database by writing code to manage the records table in the database named employeeinfo. records table consist of following columns fname,lname,city,phone,salary.
Crud function how to perform the RESTful Web Service let discuss with following annotations.
@PostMapping: annotation which used to create new record.
@GetMapping: annotation which used to reads a record.
@RequestMapping: annotation which used to search the record.
@PutMapping: annotation which used to update the existing record.
@DeleteMapping: annotation which used to delete the record.
The package structure, you must following the standard package structure of spring boot and spring framework.for the example i have created the project name demo1
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 | com.example.demo1 -------------------->Demo1Application.java // This is the main class of the programme where the programming runs. Spring Boot MVC Structure | -------------------->Studentservice.java com.example.demo1.service | --------------------->StudentController com.example.demo1.controller | ----------------------> Stuentrepository.java com.example.demo1.repository | -----------------------> Student.java com.example.demo1.Entity |

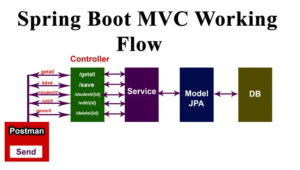

Spring Boot Mvc Working Flow
First you must Create the package com.example.demo1.Entity. inside the package you have to create the class.
i have created the table name which is records in the database. this annotation @Table(name=”Records”) indicate the table name of the database.
- Entity annotation @Entity indicate as Entity of class.
- Column annotation @Column indicate each column of the table.
Student.java
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 | package com.example.demo1.Entity; import javax.persistence.Column; import javax.persistence.Entity; import javax.persistence.GeneratedValue; import javax.persistence.GenerationType; import javax.persistence.Id; import javax.persistence.Table; @Entity @Table(name="Records") public class Student { @Id @Column(name="id") @GeneratedValue(strategy = GenerationType.IDENTITY) private long id; @Column(name="fname") private String fname; @Column(name="lname") private String lname; @Column(name="city") private String city; @Column(name="phone") private String phone; @Column(name="salary") private String salary; public long getId() { return id; } public void setId(long id) { this.id = id; } public String getFname() { return fname; } public void setFname(String fname) { this.fname = fname; } public String getLname() { return lname; } public void setLname(String lname) { this.lname = lname; } public String getCity() { return city; } public void setCity(String city) { this.city = city; } public String getPhone() { return phone; } public void setPhone(String phone) { this.phone = phone; } public String getSalary() { return salary; } public void setSalary(String salary) { this.salary = salary; } } |
StudentController.java
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 | import java.util.List; import org.springframework.beans.factory.annotation.Autowired; import org.springframework.ui.Model; import org.springframework.web.bind.annotation.DeleteMapping; import org.springframework.web.bind.annotation.GetMapping; import org.springframework.web.bind.annotation.PathVariable; import org.springframework.web.bind.annotation.PostMapping; import org.springframework.web.bind.annotation.PutMapping; import org.springframework.web.bind.annotation.RequestBody; import org.springframework.web.bind.annotation.RequestMapping; import org.springframework.web.bind.annotation.RequestMethod; import org.springframework.web.bind.annotation.RestController; import com.example.demo1.Entity.Student; import com.example.demo1.repository.Studentrepository; import com.example.demo1.service.StudentServices; @RestController public class StudentContoller { @Autowired private StudentServices services; @GetMapping("/getall") public Iterable<Student>getStudents() { return services.listAll(); } @PostMapping(value = "/save") private long saveBook(@RequestBody Student students) { services.saveOrUpdate(students); return students.getId(); } @RequestMapping("/student/{id}") private Student getBooks(@PathVariable(name = "id") int studentid) { return services.getStudentById(studentid); } @PutMapping("/edit/{id}") private Student update(@RequestBody Student students) { services.saveOrUpdate(students); return students; } @DeleteMapping("/delete/{id}") private void deleteStudent(@PathVariable("id") int id) { services.delete(id); } } |
First you must Create the package com.example.demo1.service . inside the package you have to create the class
Studentservice.java
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 | package com.example.demo1.service; import java.util.List; import org.springframework.beans.factory.annotation.Autowired; import org.springframework.stereotype.Service; import com.example.demo1.Entity.Student; import com.example.demo1.repository.Studentrepository; @Service public class StudentServices { @Autowired private Studentrepository repo; public Iterable<Student> listAll() { return this.repo.findAll(); } //saving a specific record by using the method save() of CrudRepository public void saveOrUpdate(Student students) { repo.save(students); } public Student getStudentById(long id) { return repo.findById(id).get(); } public void update(Student students, int id) { repo.save(students); } public void delete(long id) { repo.deleteById(id); } } |
EmployeeRepository.java
First you must Create the package com.example.demo1.repository inside the package you have to create the Interface here.
1 2 3 4 5 6 7 8 9 10 | package com.example.demo1.repository; import org.springframework.data.repository.CrudRepository; import org.springframework.stereotype.Repository; import com.example.demo1.Entity.Student; @Repository public interface Studentrepository extends CrudRepository<Student,Long> { } |
After that you must set database path and project configuration in application.properties file.
1 2 3 4 5 6 7 8 | spring.datasource.url=jdbc:mysql://localhost:3306/employeeinfo?useUnicode=true&useJDBCCompliantTimezoneShift=true&useLegacyDatetimeCode=false&serverTimezone=UTC server.error.whitelabel.enabled=false server.port=8010 spring.datasource.username=root spring.datasource.password= spring.jpa.open-in-view=false spring.thymeleaf.cache=false |
React JS
React Js is a Frontend Framework.
Install React App
1 | npx create-react-app my-app |
Add these dependencies
1 2 | npm install axios npm install react-router-dom@5.2.0 |
registation.js
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 | import axios from "axios"; import { useState } from "react"; import "../components/registation.css"; function Register() { const [id, setId] = useState(""); const [firstname, setFname] = useState(""); const [lastname, setLname] = useState(""); const [city, setCity] = useState(""); const [phone, setPhone] = useState(""); const [salary, setSalary] = useState(""); async function handleSubmit(event) { event.preventDefault(); try { await axios.post("http://localhost:8013/save", { id: id, fname: firstname, lname : lastname, city : city, phone : phone, salary :salary }); alert("User Registation Successfully"); setId(""); setFname(""); setLname(""); setCity(""); setPhone(""); setSalary(""); } catch(err) { alert("User Registation Failed"); } } return ( <div className="register-container"> <form className="register-form" onSubmit={handleSubmit}> <br></br> <h1>Register</h1> <p>Fill in the Information Below</p> <input type="text" name="id" placeholder="id" onChange={(event) => { setId(event.target.value); }} /> <input type="text" name="firstname" placeholder="Firstname" onChange={(event) => { setFname(event.target.value); }} /> <input type="text" name="lastname" placeholder="lastname" onChange={(event) => { setLname(event.target.value); }} /> <input type="text" name="city" placeholder="city" onChange={(event) => { setCity(event.target.value); }} /> <input type="text" name="phone" placeholder="phone" onChange={(event) => { setPhone(event.target.value); }} /> <input type="text" name="salary" placeholder="salary" onChange={(event) => { setSalary(event.target.value); }} /> <button type="submit">Register</button> </form> </div> ) } export default Register; |
create file registation.css and do it.
registation.css
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 | .register-container { display: flex; height: 78vh; justify-content: center; align-items: center; } .register-form { display: flex; flex-direction: column; min-width: 30vw; } h2{ text-transform: uppercase; letter-spacing: 0.15rem; text-align: center; margin:0; } input { padding-top: 0.9rem; padding-bottom: 0.9rem; padding-right: 0.9rem; margin: 0.5rem; } button { background-color: black; color: white; padding-top: 0.5rem; padding-bottom: 0.5rem; text-transform: uppercase; letter-spacing: 0.15rem; border: 1px solid white; } .bottom-link { text-decoration: none; color: black; } |
App.js
The is main file where we will call the compontents.
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 | import Register from "./pages/registation"; import './App.css'; import {BrowserRouter,Switch,Route} from 'react-router-dom'; function App() { return ( <div className="App"> <BrowserRouter> <Switch> <Route path="/" exact> <Register/> </Route> </Switch> </BrowserRouter> </div> ); } export default App; |
i have attached the video link below. which will do this tutorials step by step.
